Technical parameters

• The voltage signal output supports digital calibration, and the output range is ± 4.5V or 0 ~ 5V / 10V
• Constant voltage excitation, default 4.096V, support load impedance 350 ~ 1K Ω
• The input signal range of support pressure core body is ± 1mV ~ ± 200mV
• It supports automatic polarity conversion of pressure core signal
• Temperature drift coefficient < 50ppm / ℃
• The working environment temperature is - 20 ~ 85 ℃, the humidity is less than 85%, and the environment is dry and non-corrosive

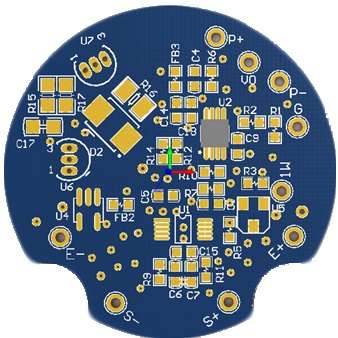

• Standard PCB round board (Φ 37mm); the whole board height is less than 5mm
• Wide voltage power supply 7.5-36v power supply

remarks

If the output voltage is 0-10V, the power supply voltage range is 12v-36v, we need to contact us in advance to adjust Relevant parameters on the whole board
