Technical parameters

• The output voltage range is 0.1-4.75v
• The voltage excitation mode, the default excitation is 4.096V, and the default support load impedance is not less than 1K Ω
• The input signal range of support pressure core body is ± 1mV ~ ± 200mV
• It supports automatic polarity conversion of pressure core signal
• Temperature drift coefficient < 50ppm / ℃
• The working environment temperature is - 20 ~ 85 ℃, the humidity is less than 85%, and the environment is dry and non-corrosive

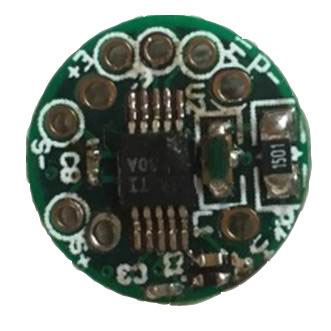

• Standard PCB round board (Φ 12mm); the whole board height is less than 4mm
• Power supply voltage: 9 ~ 15V power supply
