Technical parameters
-
Output two 4-20mA current signals with output current limiting protection
function
-
The excitation voltage of strain gauge is 5V
-
The impedance of supporting strain gauge is 350 ~ 1K ¦¸
-
The signal amplification circuit adopts two-point calibration, and the
calibrated parameters can be stored in the device
-
It supports bidirectional tension pressure signal conditioning and
amplification application
-

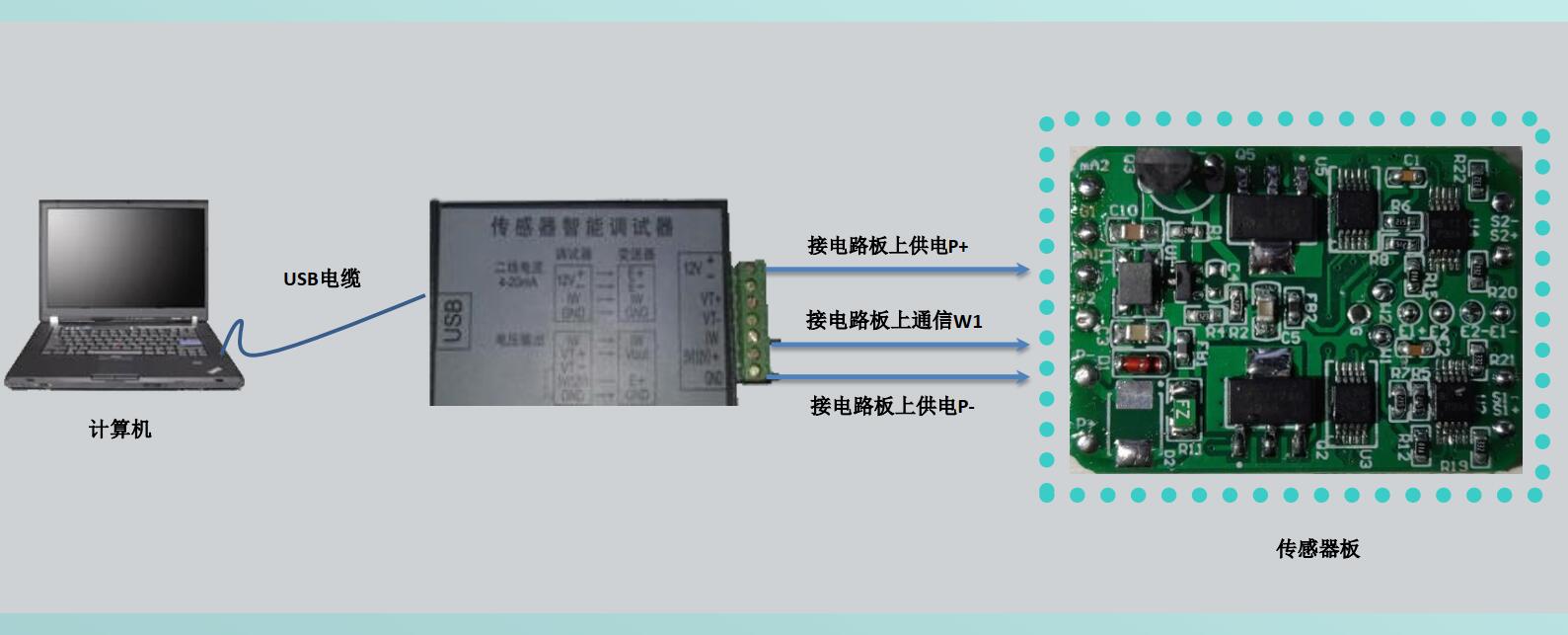

It supports full digital debugging and calibration, and is equipped with
special test and calibration software
-
The unique anti-interference design enables the product to have high
reliability and long-term stability
-
The power supply voltage is DC 7v-36v, with anti reverse connection
protection and over-voltage and over-current protection functions
-
The PCB size is 25 * 35 * 10mm rectangular, and can be customized with
special size or shape
-
Working environment temperature - 20 ~ 85 ¡æ, humidity < 85%, dry and non corrosive environment
|
