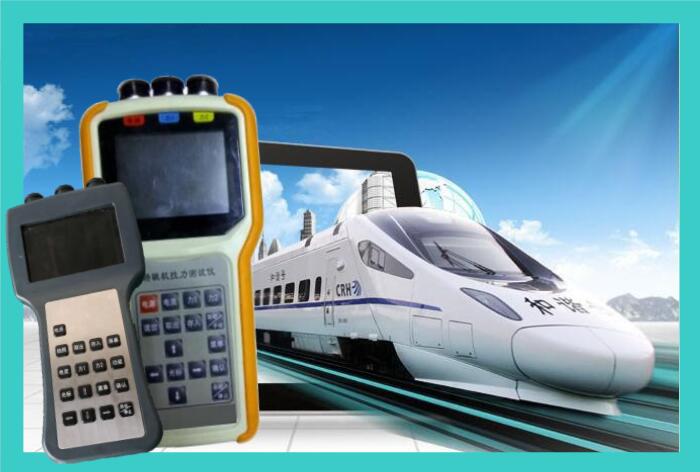

Us-R20 Hand tension tester is an instrument that can help complete the detection and interpretation of the output force and working current of the switch machine, which is convenient for maintenance personnel to judge the state of the switch machine and eliminate the potential safety hazard in railway transportation in time.

 The force and current of 2-3 traction points can be collected at the same time

The sampling data is displayed in real time and stored in the internal memory. It can store more than 1000 curves at most. If the measurement data is needed, it can also be imported to PC through USB interface

At the same time, it supports Wi Fi wireless communication function, making data export and parameter configuration more convenient

 The built-in data analysis and management test software can compare and view the historical data curve on site, and realize the management of test data curve

 Support multiple test modes, start current capture or real-time test; support the analysis function of test data

 The screen supports "day" or "night" dual mode, which is suitable for different working environment requirements

All components adopt industrial standard, and the instrument works stably in - 30 ℃ ~ + 60 ℃
